450 kV X-Ray Inspection Systems

High-energy inspection solutions for heavy castings, aerospace, and thick materials

450 kV X-Ray System

Product Overview

MAHA X-RAY 450 kV X-Ray Systems represent the highest level of industrial radiographic inspection, engineered for very high-density and thick-section components.

Designed with a high-voltage (HV) tank oil cooling system and a dynamic digital flat panel detector, these systems deliver exceptional penetration, stable output, and real-time high-quality imaging during continuous operation.

The 450 kV systems are ideal for aerospace, defence, heavy engineering, power generation, and critical infrastructure applications, where inspection accuracy and reliability are mission-critical.

Applications

  • ✔ Very thick steel and high-density castings
  • ✔ Aerospace structural components and assemblies
  • ✔ Defence sector inspection (ordnance, armour, critical assemblies)
  • ✔ Power plant components (turbines, rotors, valves)
  • ✔ Pressure vessels and heavy weld inspection
  • ✔ Large industrial forgings and castings
  • ✔ Advanced failure analysis and R&D
  • ✔ High-criticality quality assurance applications

Technical Specifications

  • X-Ray Tube Voltage: Up to 450 kV
  • Tube Current: Up to 3.3 mA (application dependent)
  • X-Ray Source: High-power HV tank type
  • Cooling System: Oil-cooled HV tank with closed-loop cooling
  • Focal Spot Size: 0.4 mm & 1.0 mm
  • Detector Type: Dynamic Digital Flat Panel Detector
  • Detector Size: 130×130 mm, 210×210 mm, 430×430 mm (configurable)
  • Image Acquisition: High-speed real-time dynamic imaging
  • Penetration Capability: Very high-density and thick materials
  • System Configuration: Cabinet / Open / Inline / Custom inspection cells
  • Power Supply: 415V AC, 50 Hz
  • Safety Compliance: Fully shielded, radiation-safe industrial design

Standard Features

  • ✔ High-stability 450 kV X-ray source
  • ✔ Heavy-duty oil-cooled HV tank system
  • ✔ Dynamic flat panel detector for real-time inspection
  • ✔ Advanced image enhancement and measurement tools
  • ✔ Lead-shielded enclosure with safety interlocks
  • ✔ Industrial PLC-based control and monitoring
  • ✔ Emergency stop, fault diagnostics and alarms
  • ✔ User-friendly inspection and reporting software

Optional Features

  • ✔ Fine-focus tube for enhanced defect detectability
  • ✔ Heavy-load motorized manipulators (XYZ, rotary, tilt)
  • ✔ Large-capacity rotary tables and positioning systems
  • ✔ Custom collimators, filters and beam-shaping solutions
  • ✔ Automated defect recognition (ADR) and AI-assisted analysis
  • ✔ Robotic or inline inspection integration
  • ✔ Image archiving, traceability and compliance reporting
  • ✔ Remote diagnostics, preventive maintenance and service support

Available System Types

  • ✔ Cabinet Type X-Ray Machines
  • ✔ Conveyor-based X-Ray Inspection Systems
  • ✔ Custom / Special Purpose X-Ray Systems

Product Overview

Designed for precision, performance, and reliability

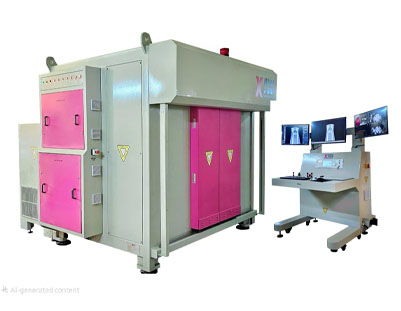

Product Image 1

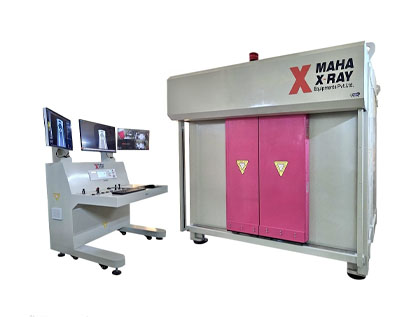

Product Image 2
