320 kV X-Ray Inspection Systems

High-penetration inspection solutions for thick-walled and high-density components

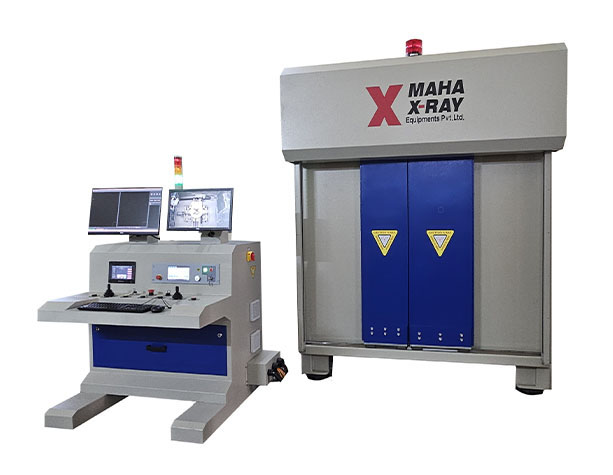

320 kV X-Ray System

Product Overview

MAHA X-RAY 320 kV X-Ray Systems are built for inspection of high-density and thick-walled components, delivering superior penetration and stable performance in demanding industrial environments.

Featuring a high-voltage (HV) tank cooling system and a dynamic digital flat panel detector, the system ensures continuous operation with high image clarity.

The 320 kV systems are suitable for heavy castings, aerospace structures, defence components, and critical safety parts, where accuracy and reliability are essential.

Applications

  • Heavy aluminium and steel castings
  • Automotive structural components
  • Aerospace parts and assemblies
  • Defence sector components and munitions inspection
  • Weld inspection (thick sections)
  • Turbine, valve, and pressure components
  • Failure analysis and advanced R&D
  • High-criticality industrial quality control

Technical Specifications

  • X-Ray Tube Voltage: Up to 320 kV
  • Tube Current: Up to 5.6 mA (application dependent)
  • X-Ray Source: HV tank type
  • Cooling System: Oil-cooled HV tank with closed-loop cooling
  • Focal Spot Size: 0.4 mm & 1 mm
  • Detector Type: Dynamic Digital Flat Panel Detector
  • Detector Size: 130×130 mm, 210×210 mm, 430×430 mm (configurable)
  • Image Acquisition: High-speed real-time imaging
  • Penetration Capability: High-density and thick materials
  • System Configuration: Cabinet type
  • Power Supply: 415V AC, 50 Hz
  • Safety Compliance: Fully shielded, radiation-safe industrial design

Standard Features

  • High-power 320 kV X-ray source
  • Oil-cooled HV tank for thermal stability
  • Dynamic flat panel detector with real-time imaging
  • Advanced image processing and dimensional measurement tools
  • Lead-shielded inspection enclosure
  • Radiation safety interlocks and monitoring
  • Industrial PLC-based control system
  • Emergency stop and fault diagnostics

Optional Features

  • Microfocus X-ray tube for enhanced defect detection
  • Heavy-duty motorized manipulators (XYZ, rotary, tilt)
  • Large-capacity rotary tables
  • Custom beam collimators and filters
  • Robotic or inline inspection integration
  • Data traceability, reporting and audit logs
  • Remote monitoring and preventive maintenance support

Product Overview

Designed for precision, performance, and reliability

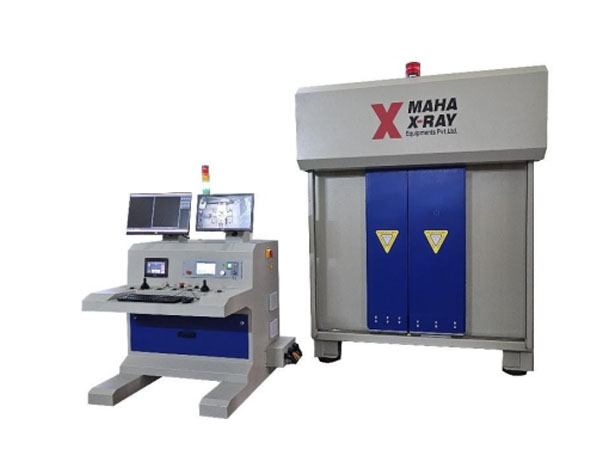

Product Image 1

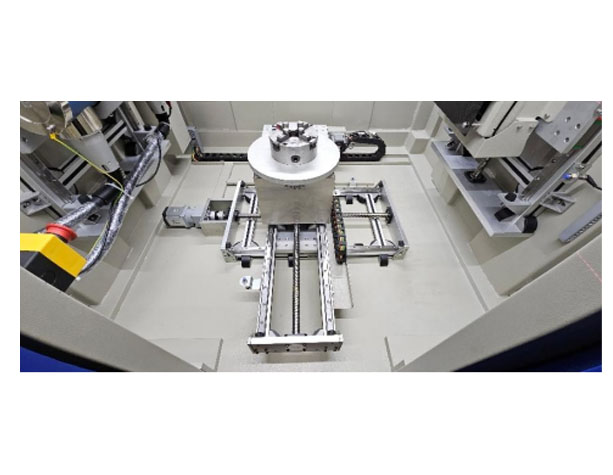

Product Image 2
