225 kV X-Ray Inspection Systems

Advanced inspection solutions for automotive parts and weld inspection

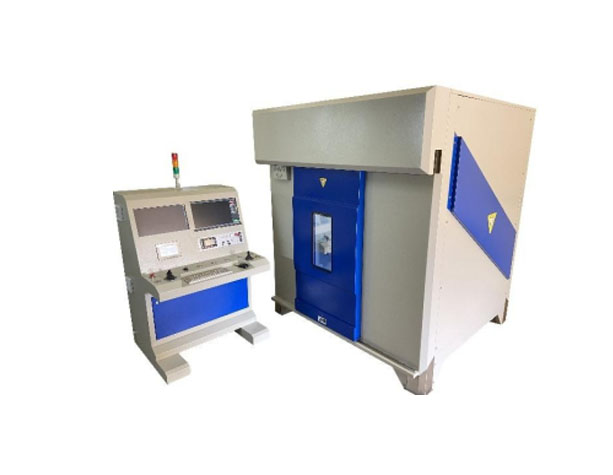

225 kV X-Ray System

Product Overview

MAHA X-RAY 225 kV X-Ray Systems are designed for inspection of medium to high-density materials, offering deeper penetration while maintaining excellent image quality.

Equipped with a high-voltage (HV) tank cooling system and a dynamic digital flat panel detector, these systems ensure stable operation during continuous inspections and deliver sharp, real-time images.

The 225 kV systems are widely used for automotive components, castings, weld inspection, and aerospace parts, making them ideal for demanding industrial and R&D applications.

Applications

  • Aluminium and magnesium castings
  • Automotive and aerospace components
  • Weld inspection (medium thickness)
  • Structural components and assemblies
  • Precision mechanical parts
  • Failure analysis and R&D
  • Quality assurance in industrial manufacturing
  • Defence sector applications

Technical Specifications

  • X-Ray Tube Voltage: Up to 225 kV
  • Tube Current: 3.33 – 8 mA (application dependent)
  • X-Ray Source: HV tank type with oil cooling
  • Cooling System: Closed-loop HV tank water cooling system
  • Focal Spot Size: 0.4 mm & 1 mm
  • Detector Type: Dynamic Digital Flat Panel Detector
  • Detector Size: 130×130 mm, 210×210 mm, 430×430 mm (configurable)
  • Image Acquisition: Real-time dynamic imaging
  • Penetration Capability: Medium to high-density materials
  • System Configuration: Cabinet / Inline system
  • Power Supply: 230V AC, 50 Hz
  • Safety Compliance: Fully shielded, radiation-safe design

Standard Features

  • 225 kV high-stability X-ray source
  • Oil-cooled HV tank system for continuous operation
  • Dynamic flat panel detector for real-time inspection
  • Advanced image processing and measurement tools
  • Radiation safety interlocks and lead shielding
  • Industrial-grade control system
  • Emergency stop and system diagnostics
  • User-friendly inspection software

Optional Features

  • Microfocus X-ray tube for high-resolution inspection
  • Motorized multi-axis manipulators (XYZ, rotary, tilt)
  • Heavy-load rotary table systems
  • Adjustable and custom collimator systems
  • Conveyor or inline inspection integration
  • Image archiving, reporting and traceability modules
  • Remote diagnostics and service support

Product Overview

Designed for precision, performance, and reliability
